LAPAROSCOPY / WHITE LIGHT
White-light Laparoscope
10 mm rigid laparoscopes designed for clear, low-distortion white-light imaging in laparoscopic systems.
Available in 0° and 30° viewing configurations, with standard and extended working-length options for different system requirements.
Compare models
Product overview
30° visual reference.

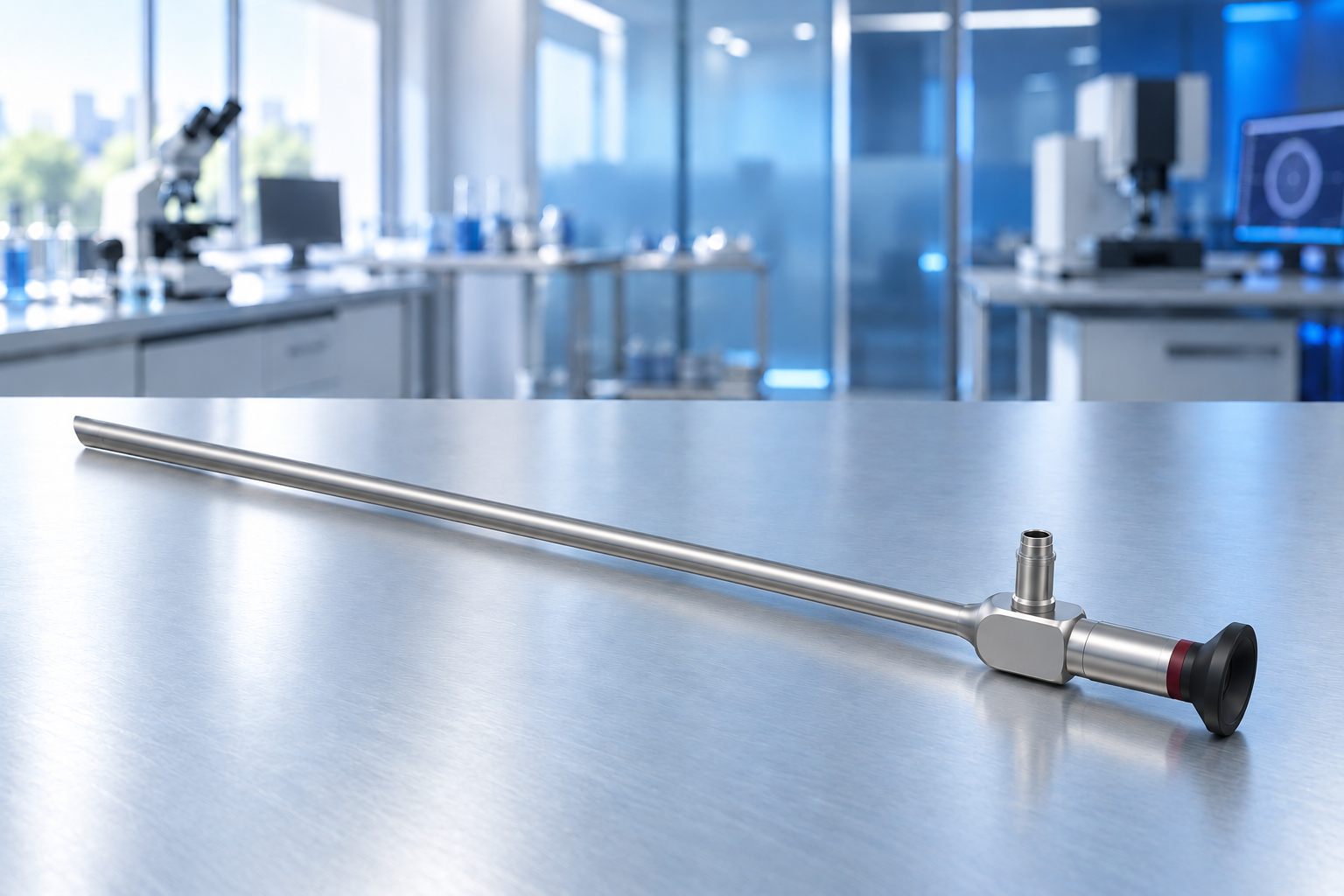

Single product perspective
30° visual reference.

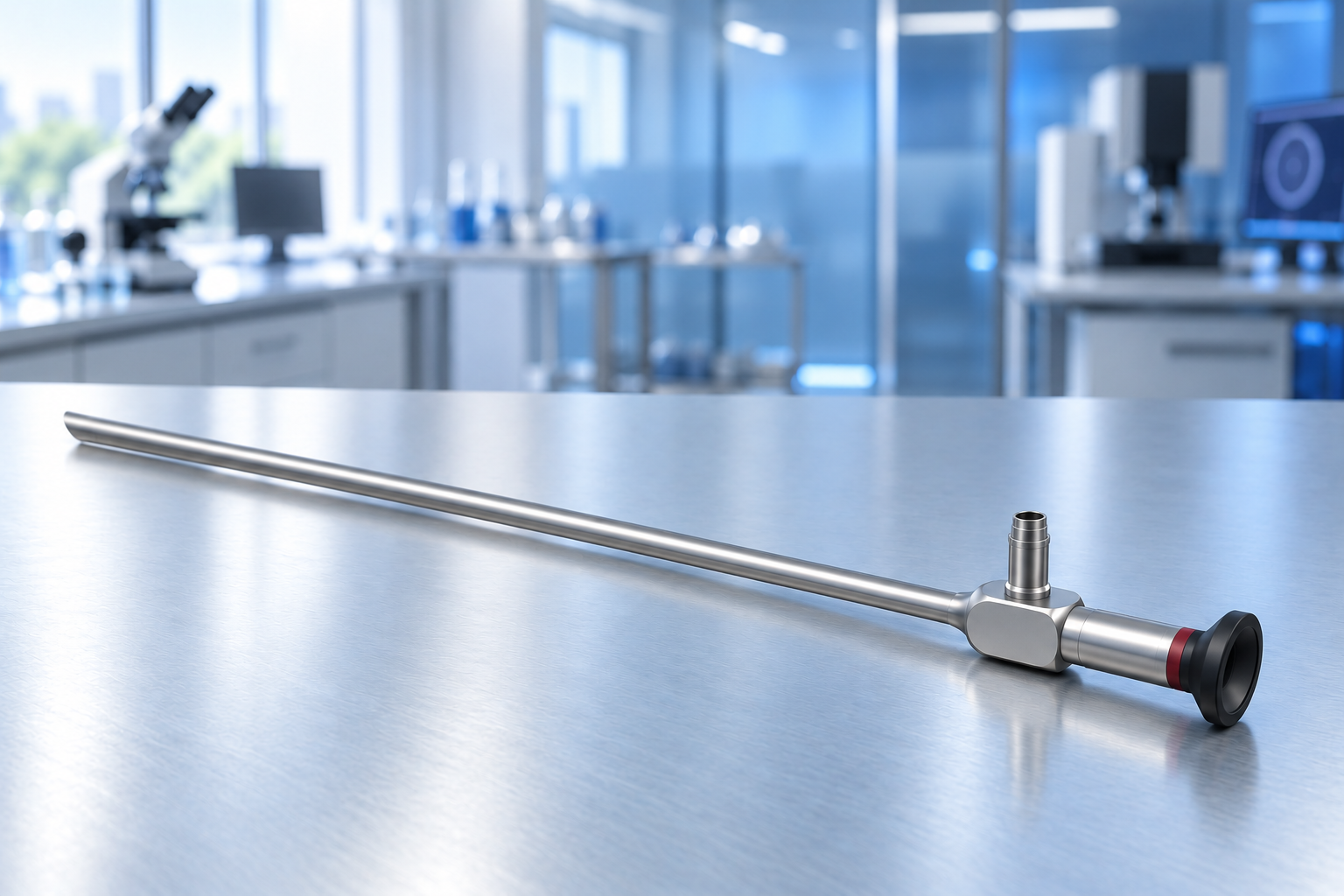

Alternate product perspective
30° visual reference.

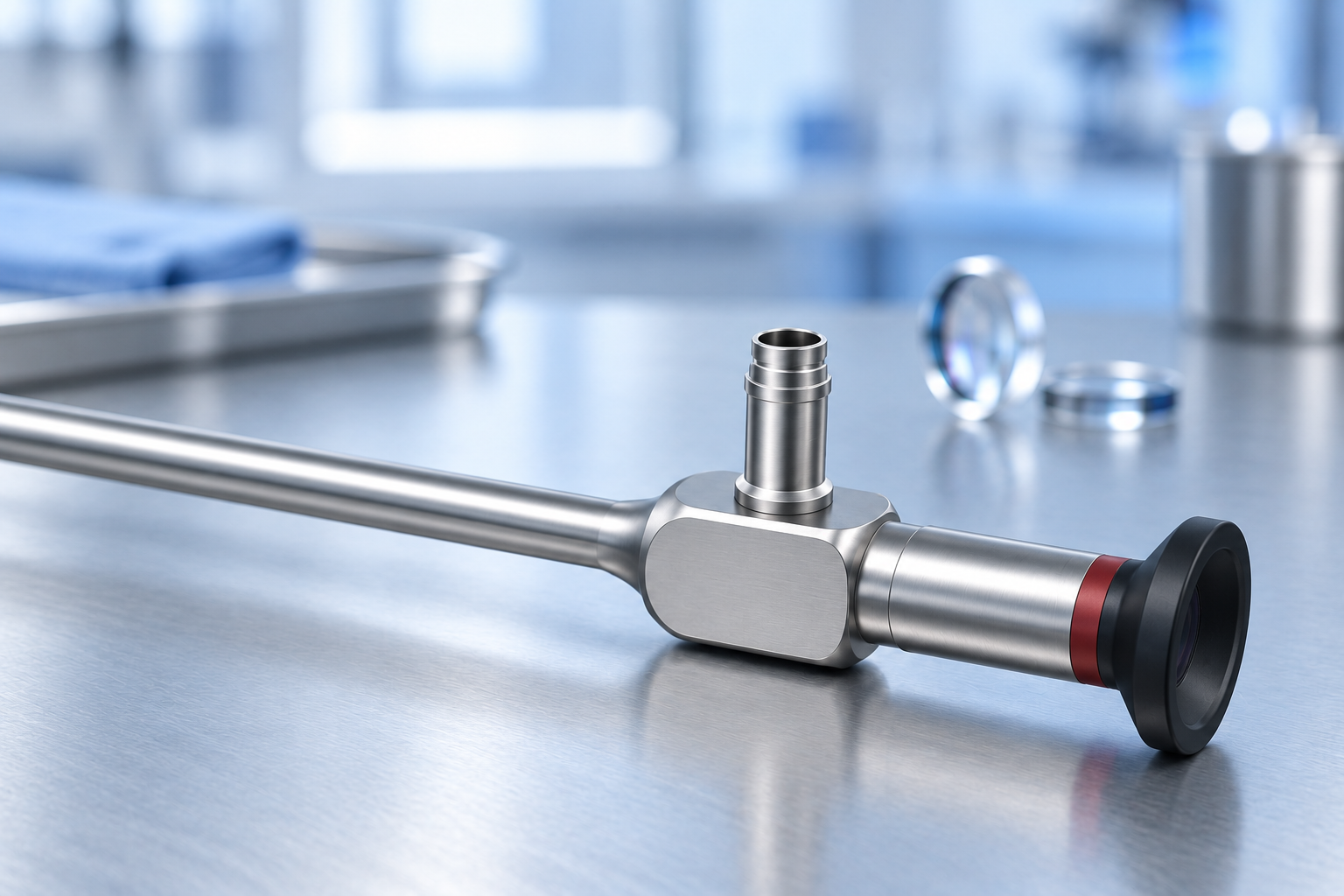

Proximal body detail
30° visual reference.

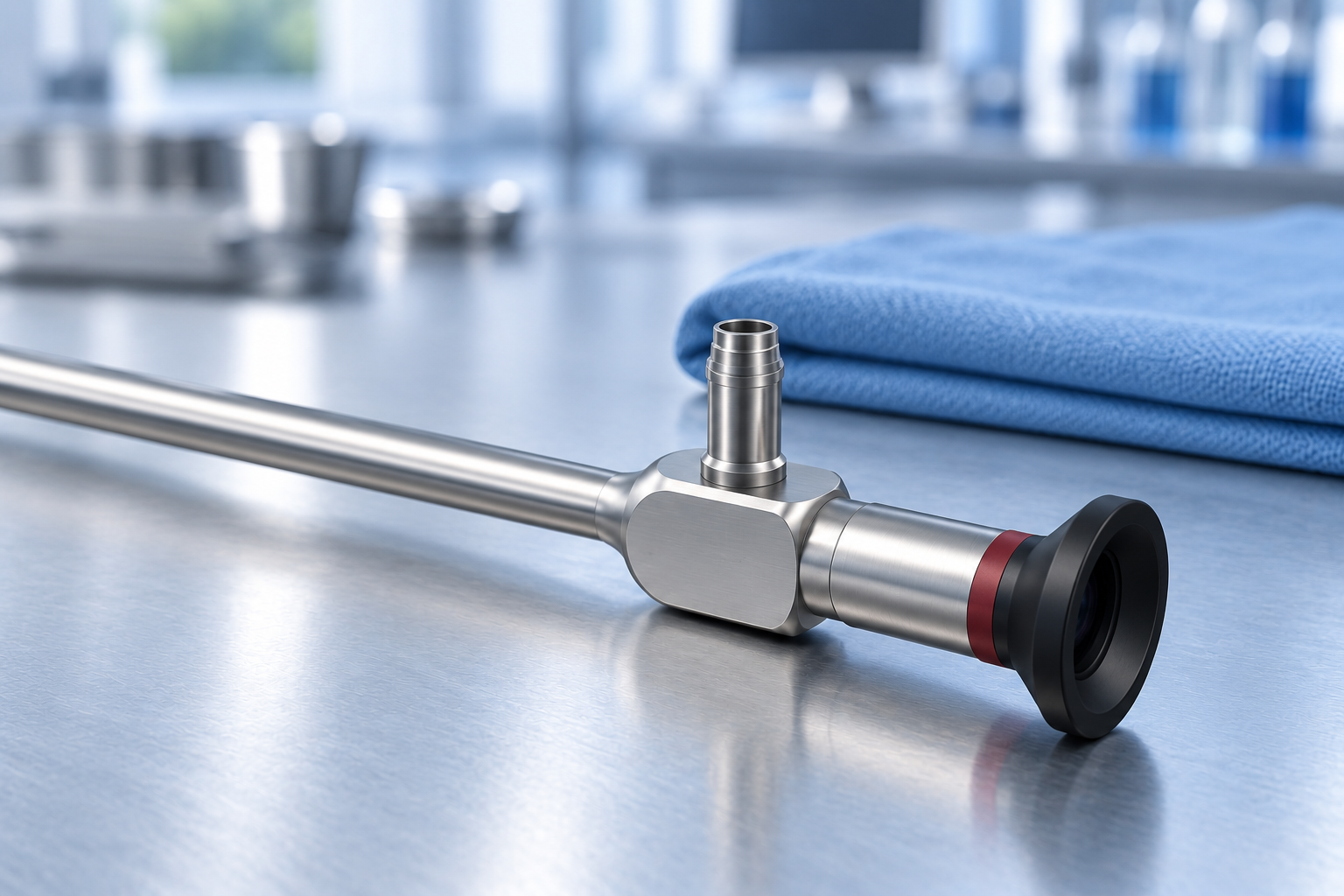

Eyepiece detail
30° visual reference.

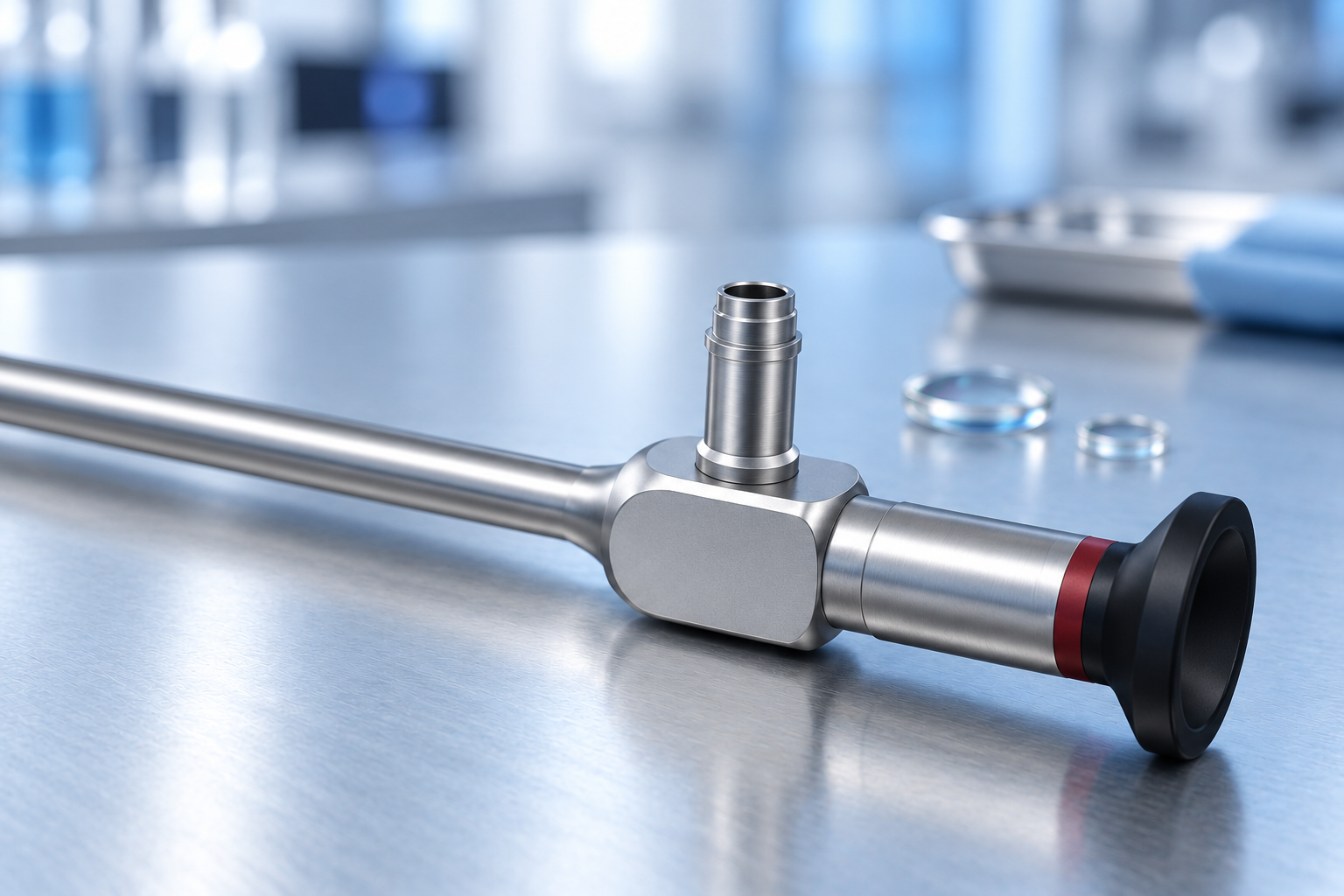

Light-guide interface detail
30° visual reference.

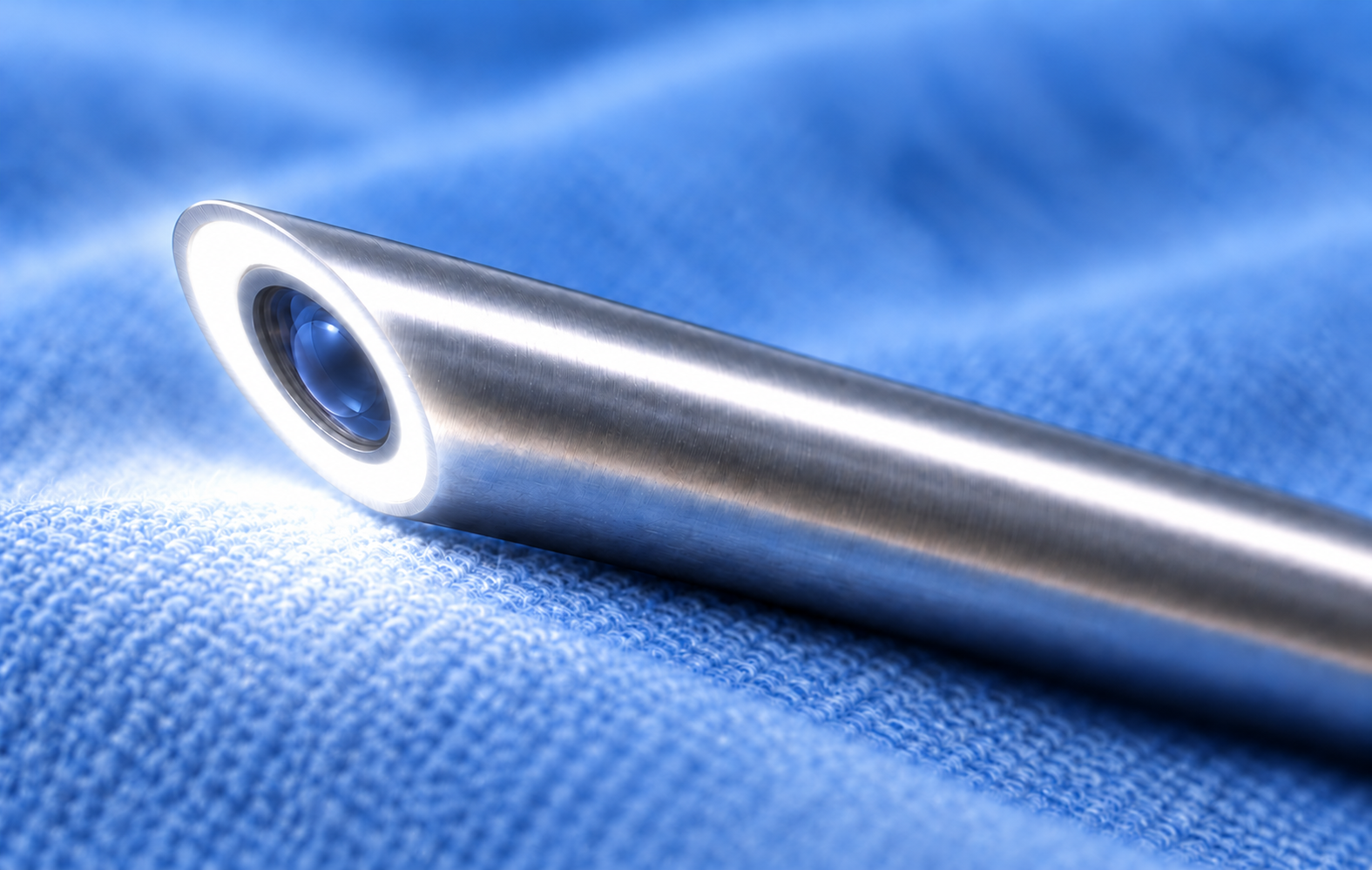

Distal beveled tip detail
30° visual reference.

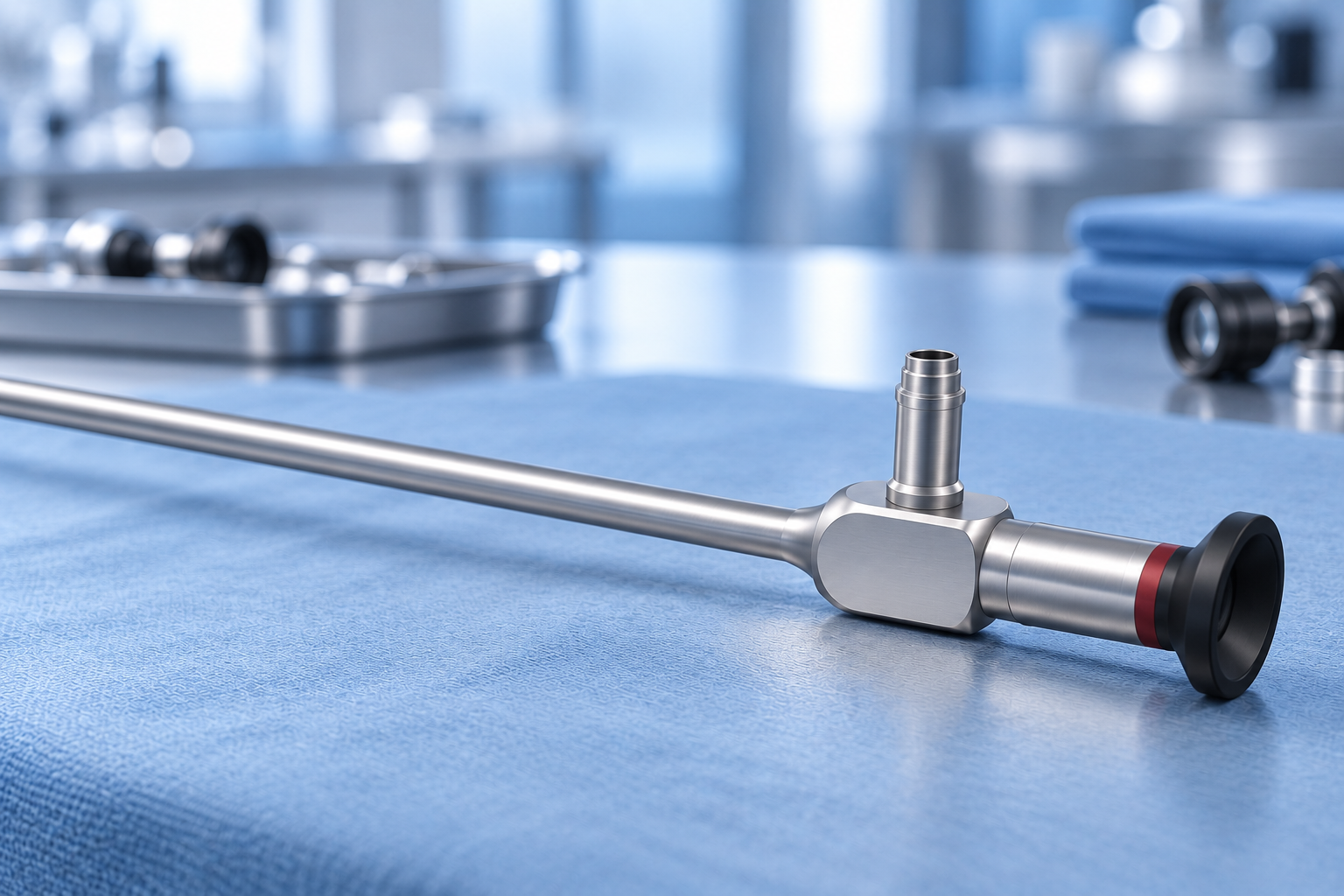

Shaft profile detail
30° visual reference.

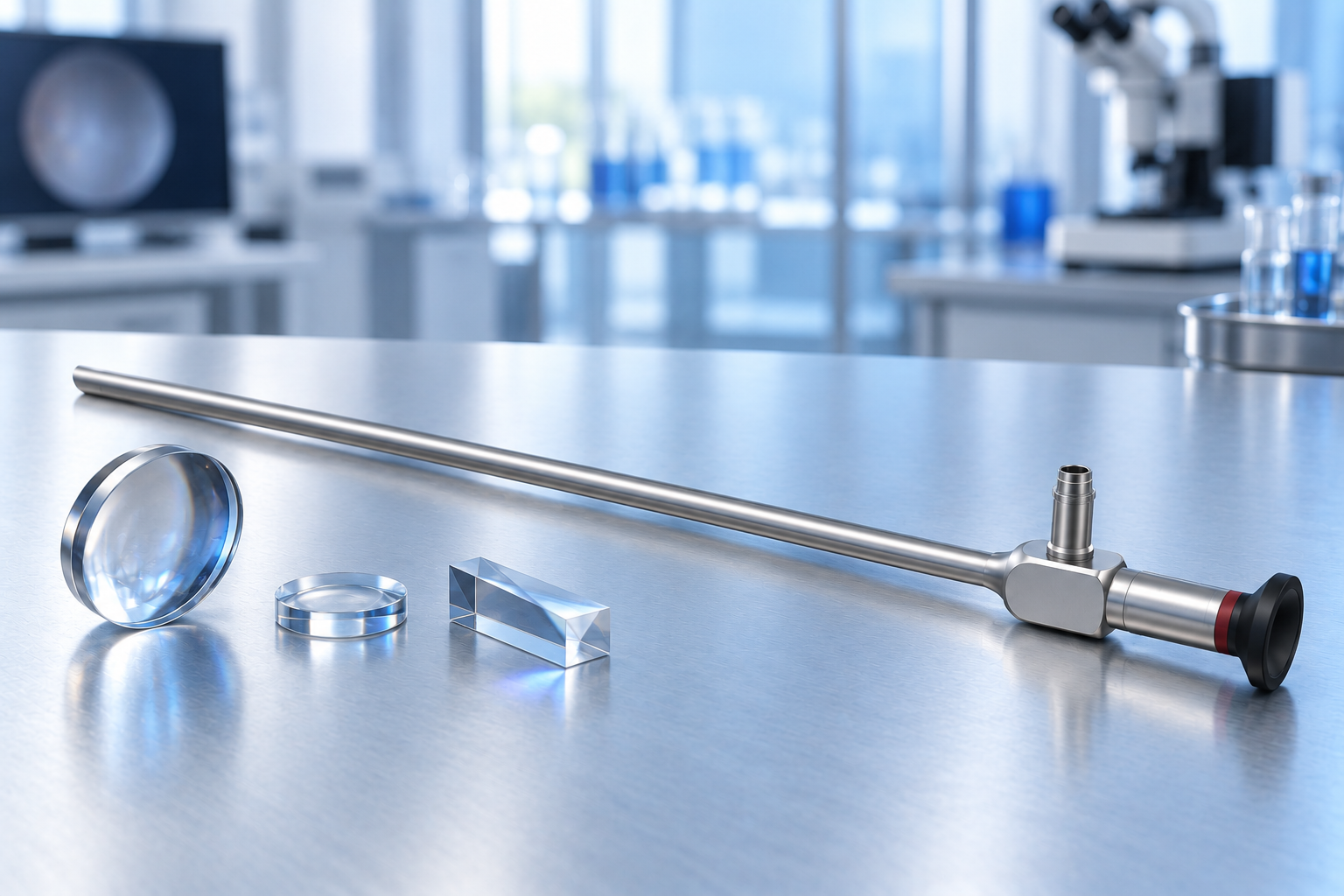

Optical components concept
Separate illustrative optics · Not an internal assembly or manufacturing section.
Product context
A focused optical platform for laparoscopic imaging.
The white-light laparoscope family combines precision optics, controlled alignment and a rigid 10 mm architecture for high-resolution endoscopic imaging.
Aspheric optical design and precision alignment are used to reduce distortion and support consistent image quality across the field of view.
Models / Specifications
Choose the configuration.
All dimensions in millimetres. On smaller screens, scroll the table horizontally.
| Model | Configuration | Diameter | Working length | Direction of view | Mode |
|---|---|---|---|---|---|
| A01000 | Standard | 10 mm | 340 mm | 0° | White light |
| A01030 | Standard | 10 mm | 340 mm | 30° | White light |
| A01000L | Extended | 10 mm | 440 mm | 0° | White light |
| A01030L | Extended | 10 mm | 440 mm | 30° | White light |
Direction of view is not field of view.
Optical characteristics
Optical performance for the imaging chain.
Image quality is influenced by the rigid scope, camera, light source and imaging platform as a complete imaging chain.
The optical scope is designed to support high-resolution white-light imaging when matched with an appropriate system.
Aspheric optics and precision alignment help reduce distortion and minimize center-to-edge image quality variation.
Request model-specific documentation.
Product data and available documentation can be discussed for the selected model and target market.
Request product information ↗Discuss this laparoscope in your system.
For product information, distribution or an OEM / supply discussion.
